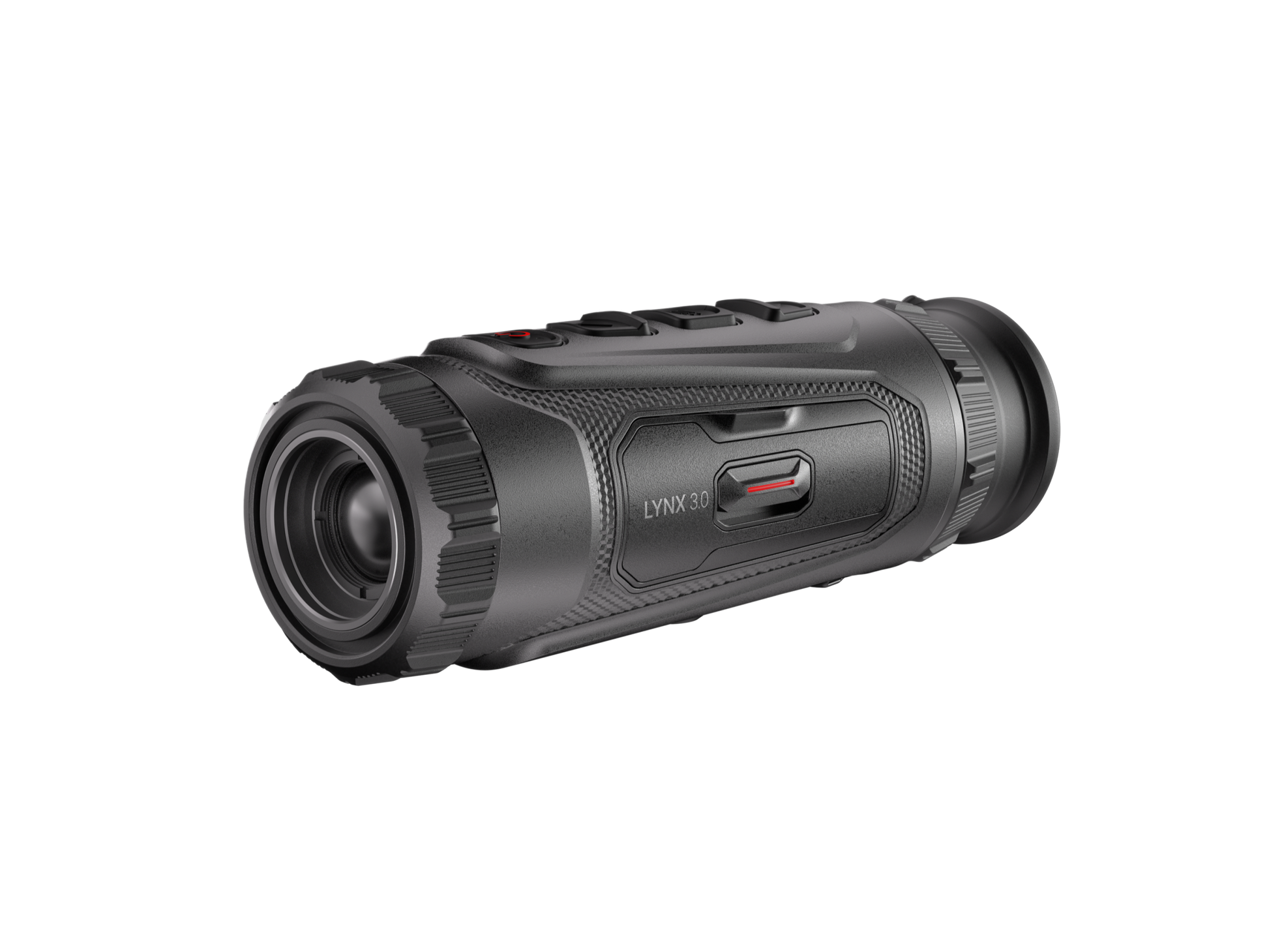

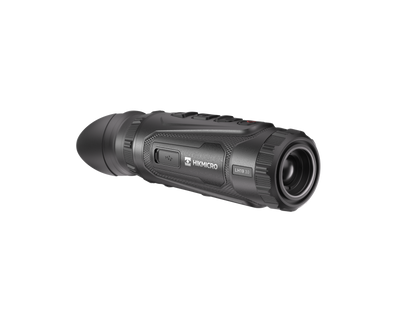

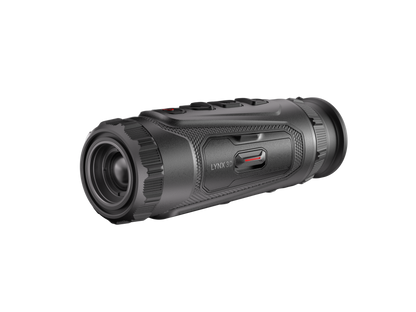

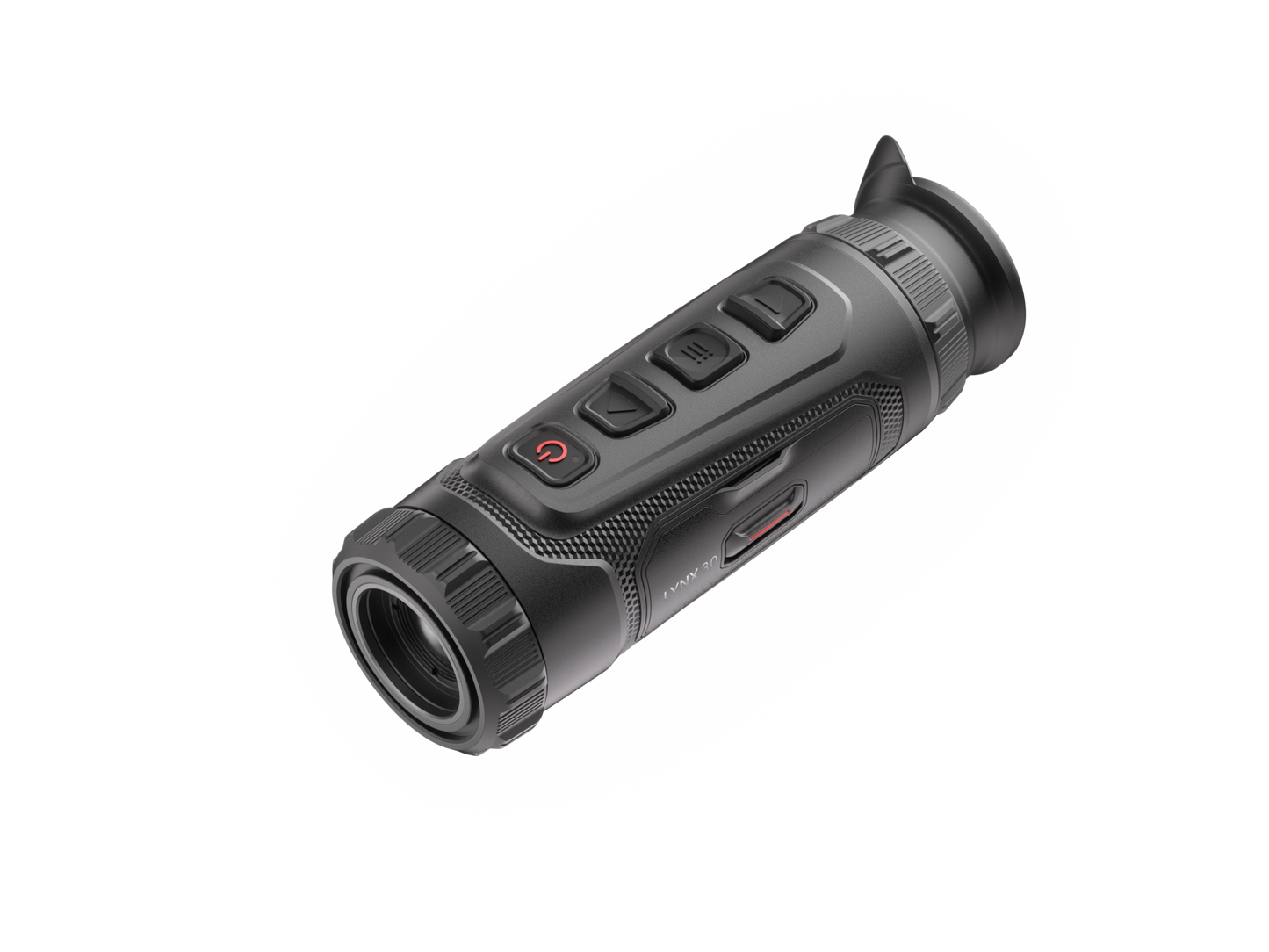

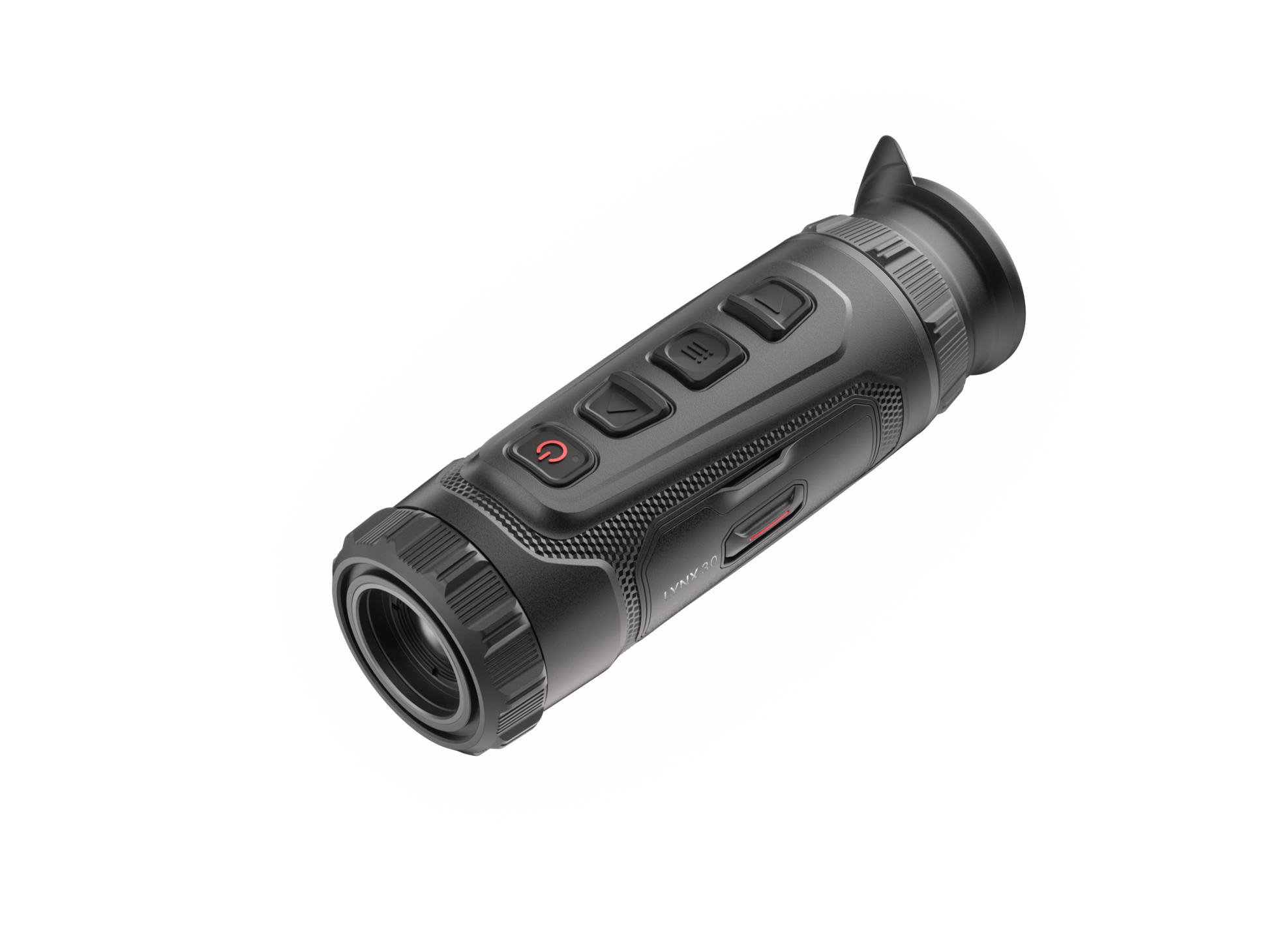

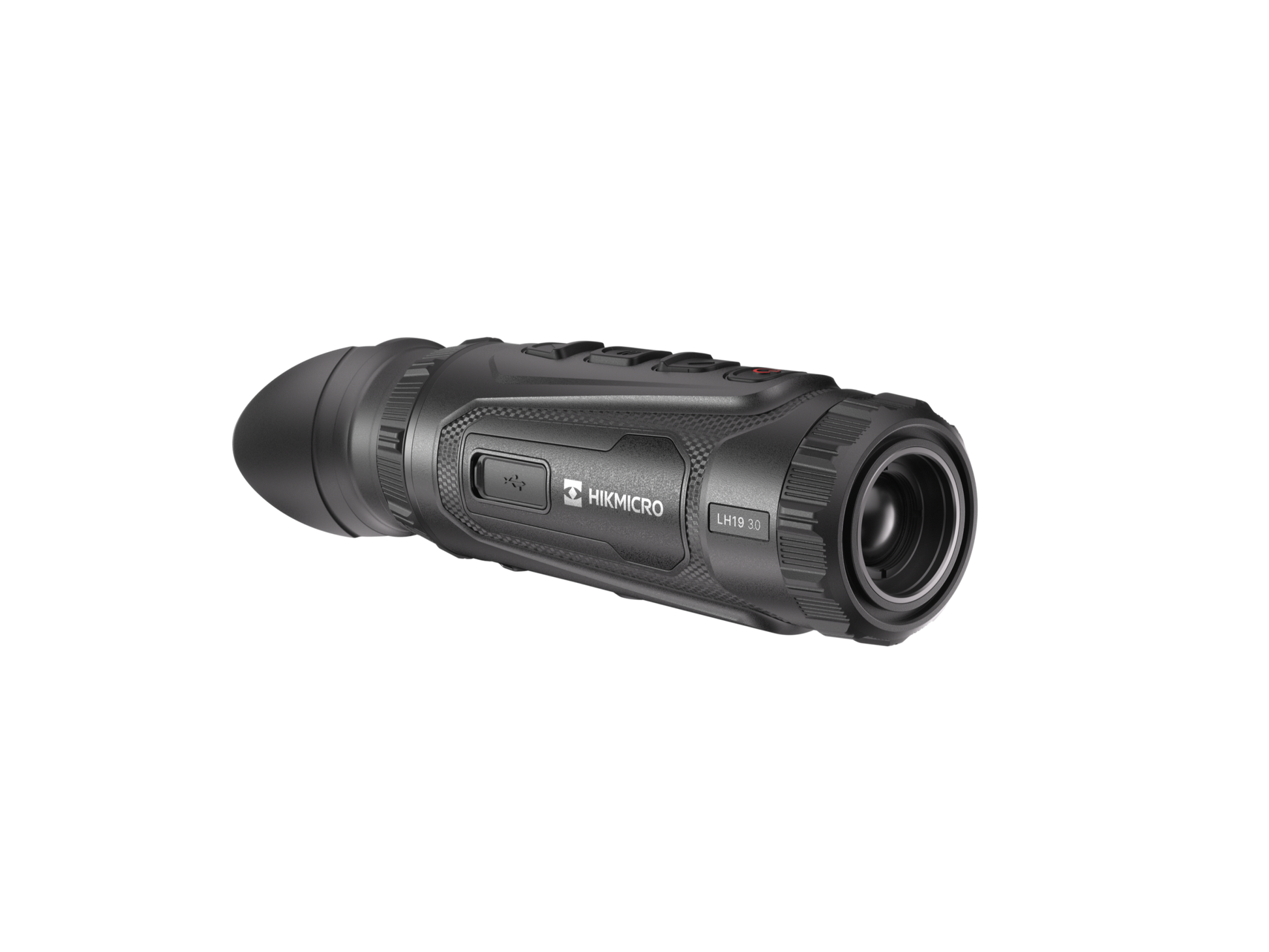

The HIKMICRO LYNX 3.0 LH19 is the versatile all-rounder of the series, perfectly balancing wide field of view with powerful detection capabilities. Built around a high-resolution 384 × 288 thermal detector and a 19 mm F1.0 lens, it delivers a 1.9× base magnification and a wide 13.8° field of view. This combination offers a detection range of 900 metres while maintaining a broad view (24.2m width at 100m), making it exceptionally effective for tracking moving targets in both forest environments and open fields.
HIKMICRO LYNX LH19 3.0 Specifications
Image Sensor: VOx Uncooled Focal Plane Arrays
Max. Resolution: 384 × 288
Frame Rate: 50 Hz
Pixel Interval: 12 μm
Response Waveband: 8 μm to 14 μm
NETD: Less than 15 mK (@25°C), F#=1.0
Lens (Focal Length): 19 mm, F1.0
Focus Mode: Focus Ring (Manual Focus)
Min. Focusing Distance: 3.0 m
Magnification: 1.9× – 15.2× (8× Digital Zoom)
Field of View (H × V): 13.8° × 8.4° / 24.2 m × 14.7 m @ 100 m
Detection Range: 900 m
Display: 0.49 inch, AMOLED, 1920 × 1080
Contrast Adjustment: Yes
Brightness Adjustment: Yes
Palettes: Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
Tone Adjustment: Cold, Warm
Zoom Pro: Yes
HSIS (HIKMICRO Shutterless Image System): Yes
Image Pro 3.0: Yes
Battery Type: Replaceable and rechargeable 18650 battery
Runtime: ~5 hours (@25°C) / 4.5 hours (@-20°C)
Protection Level: IP67
Weight: 331 g (with battery)
