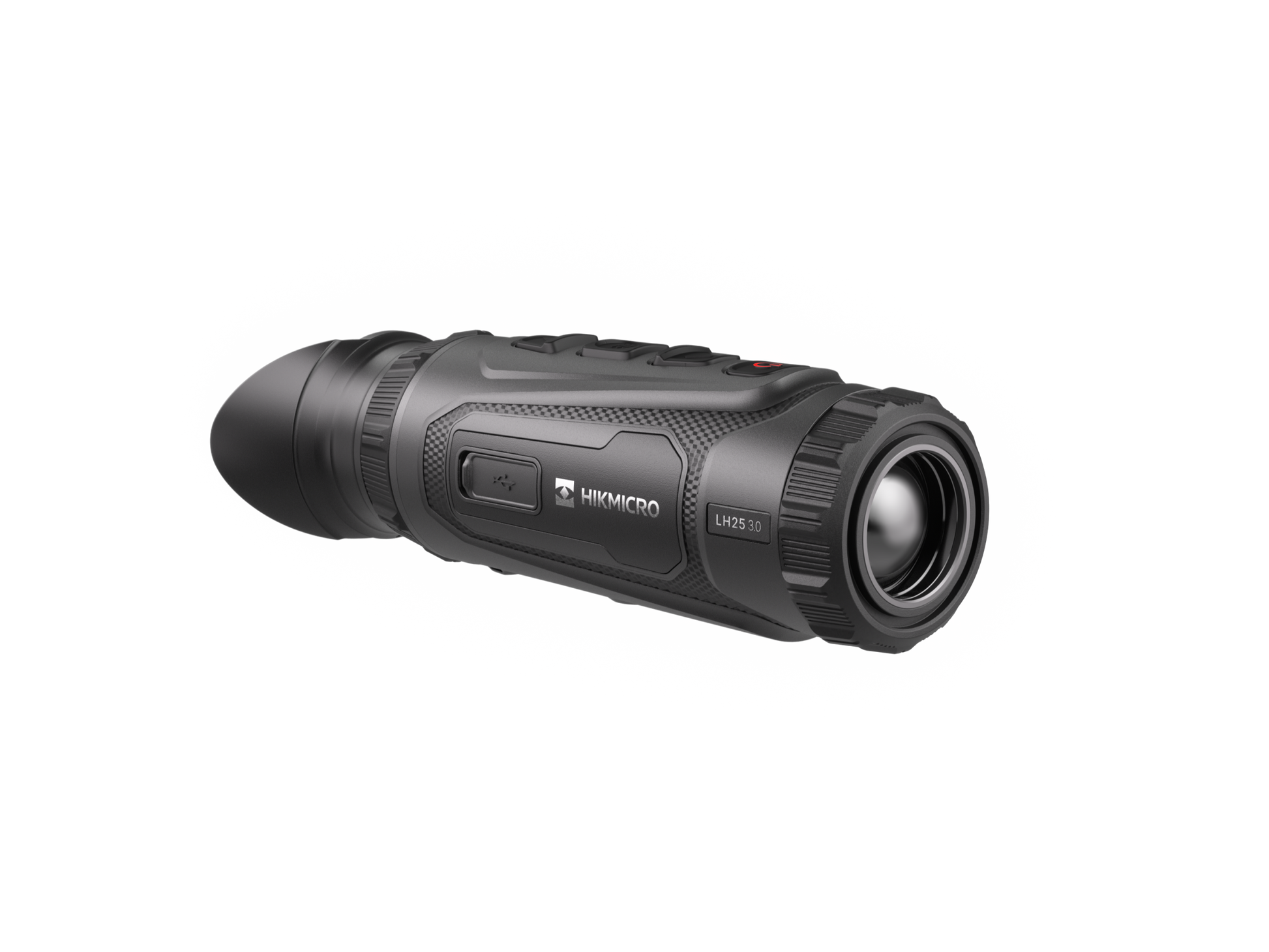

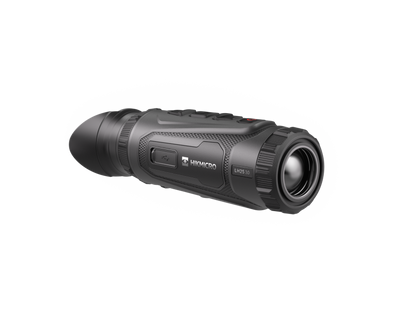

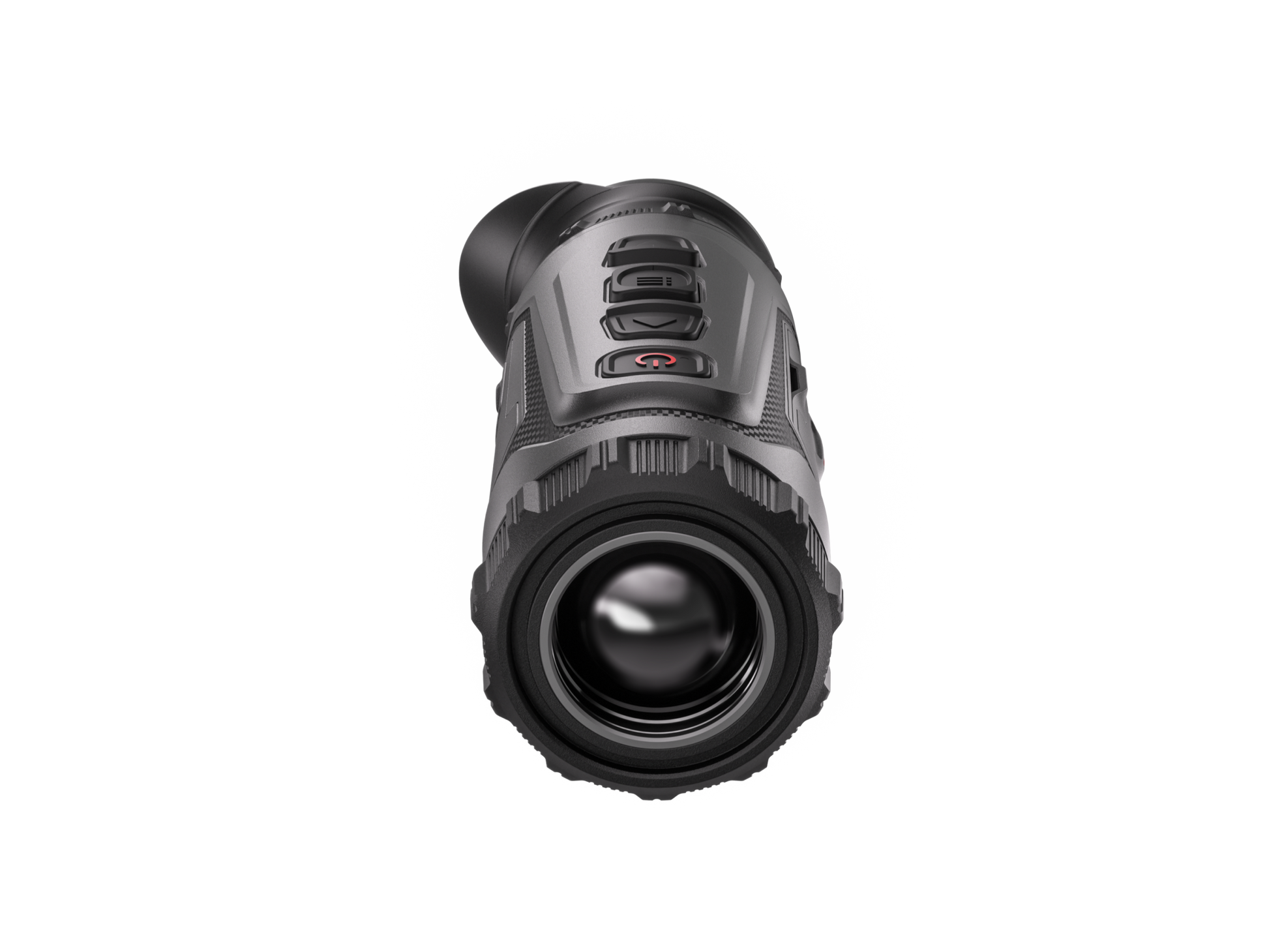

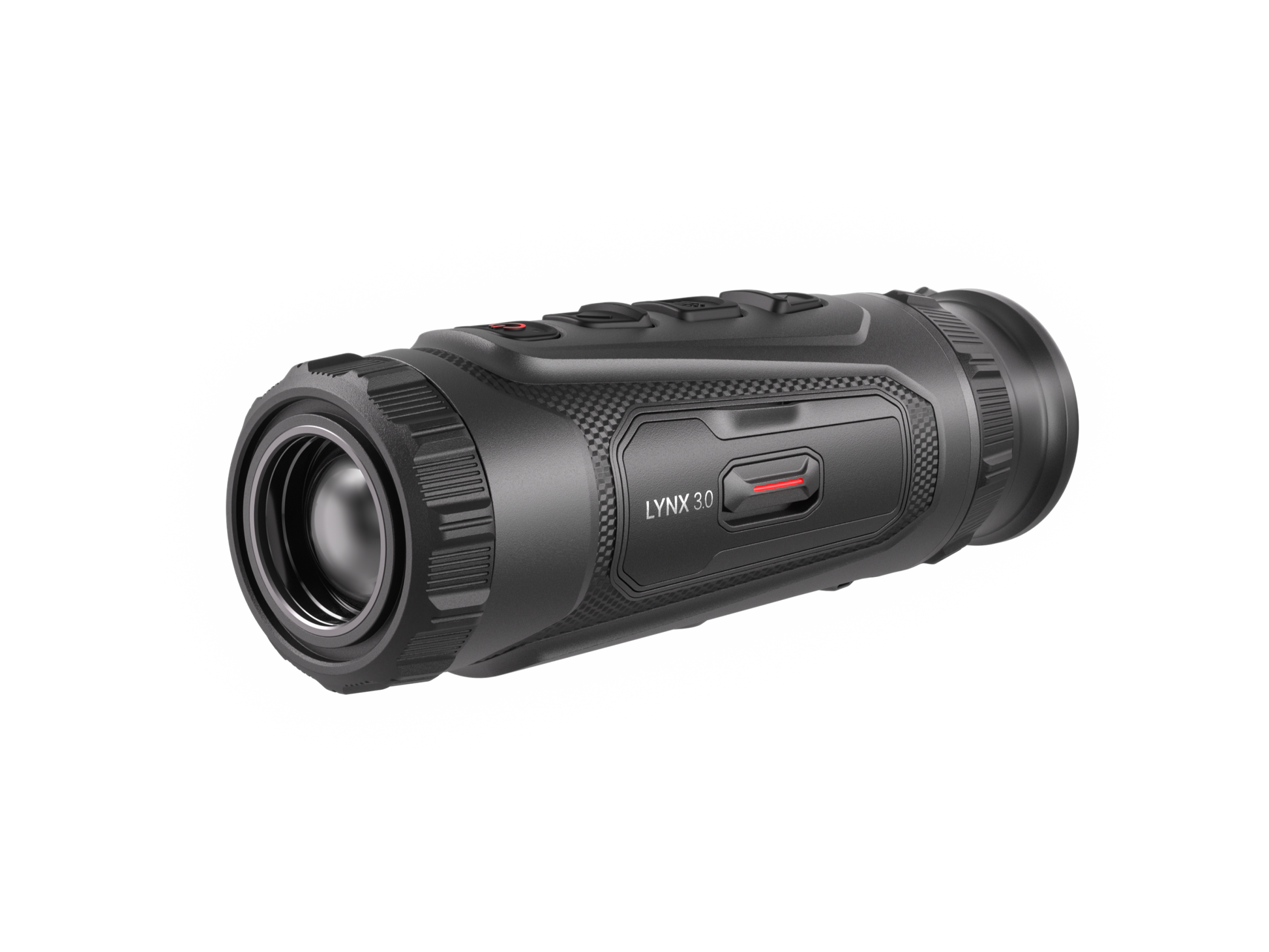

The HIKMICRO LYNX 3.0 LH25 is designed for users who need maximum detection range in a pocket-sized package. Featuring a high-sensitivity 384 × 288 thermal detector and a powerful 25 mm F1.0 lens, it offers a 2.5× base magnification and a focused 10.5° field of view. This optical configuration extends the detection range to an impressive 1200 metres, making it the ideal choice for scanning open landscapes, fields, and hillsides where distance is key.
HIKMICRO LYNX LH25 3.0 Specifications
Image Sensor: VOx Uncooled Focal Plane Arrays
Max. Resolution: 384 × 288
Frame Rate: 50 Hz
Pixel Interval: 12 μm
Response Waveband: 8 μm to 14 μm
NETD: Less than 15 mK (@25°C), F#=1.0
Lens (Focal Length): 25 mm, F1.0
Focus Mode: Focus Ring (Manual Focus)
Min. Focusing Distance: 3.0 m
Magnification: 2.5× – 20.0× (8× Digital Zoom)
Field of View (H × V): 10.5° × 6.4° / 18.4 m × 11.2 m @ 100 m
Detection Range: 1200 m
Display: 0.49 inch, AMOLED, 1920 × 1080
Contrast Adjustment: Yes
Brightness Adjustment: Yes
Palettes: Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
Tone Adjustment: Cold, Warm
Zoom Pro: Yes
HSIS (HIKMICRO Shutterless Image System): Yes
Image Pro 3.0: Yes
Battery Type: Replaceable and rechargeable 18650 battery
Runtime: ~5 hours (@25°C) / 4.5 hours (@-20°C)
Protection Level: IP67
Weight: 328.5 g (with battery)
