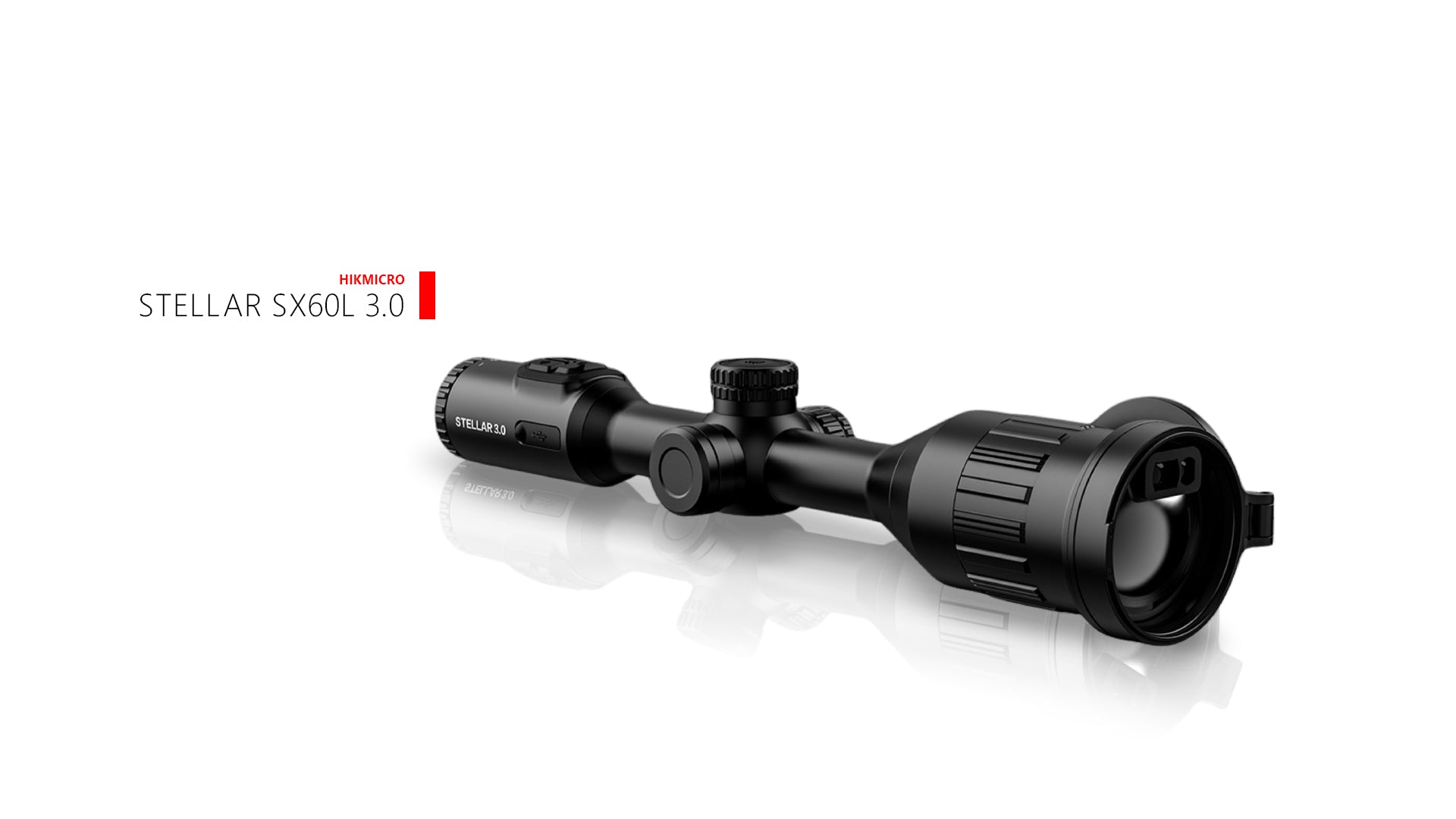

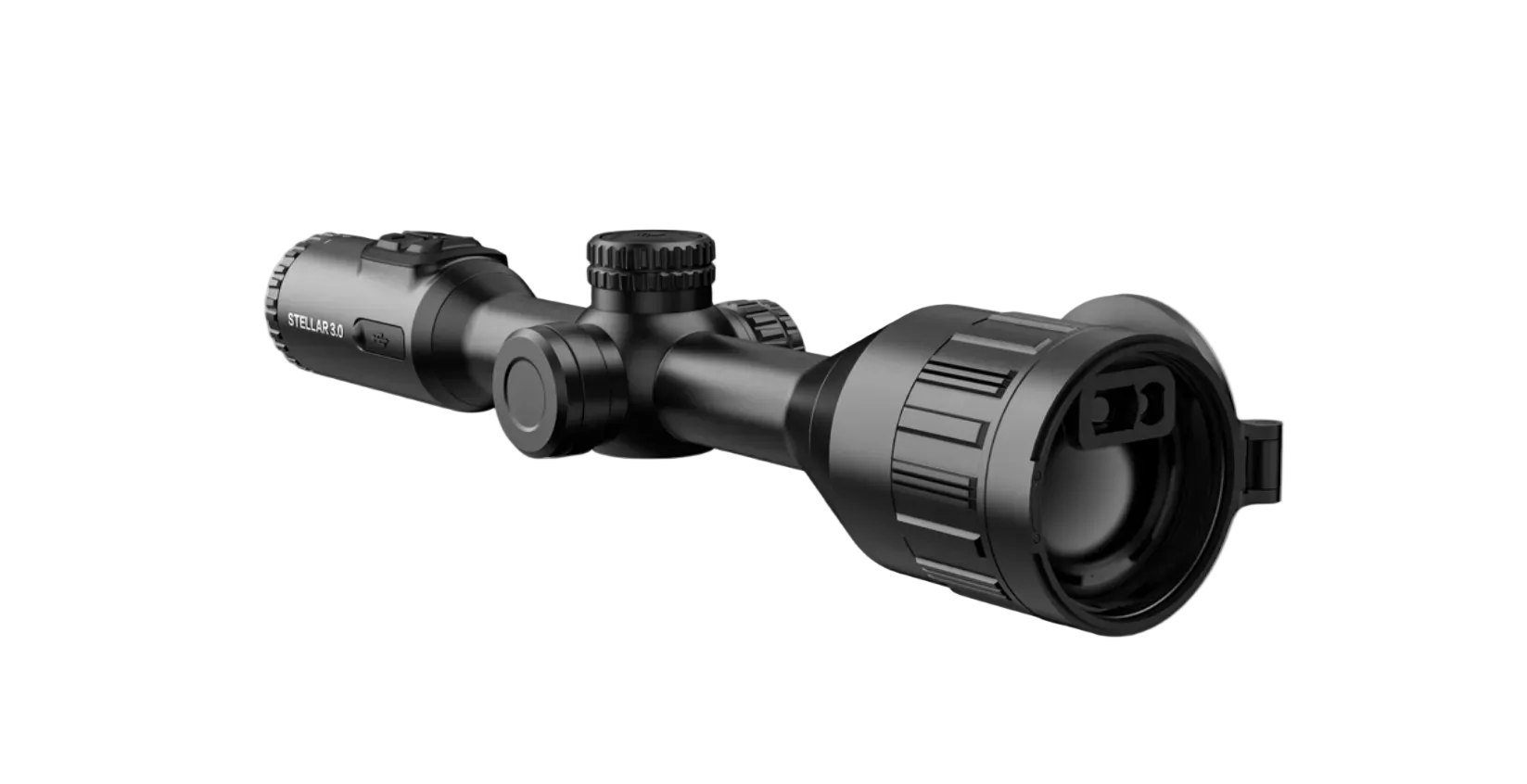

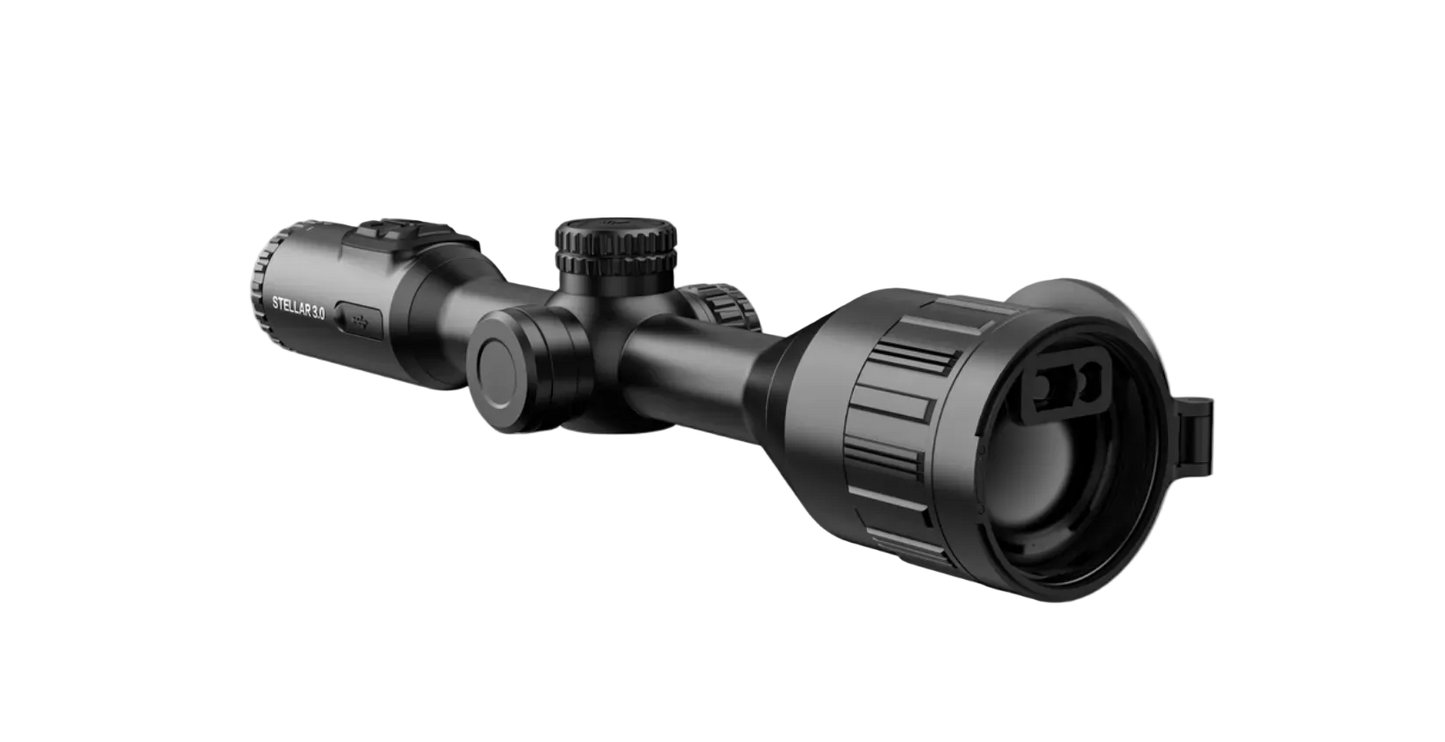

HIKMICRO STELLAR 3.0 SX60L

HIKMICRO STELLAR SX60L 3.0 Thermal Scope is equipped with a 1280 × 1024 @12 μm thermal detector, with much higher sensitivity (NETD < 18 mK) and the latest image processing algorithm (Image Pro 2.0), ensuring users catch the finest details no matter the weather or light conditions without interruption.

 With a 2560 × 2560 1.03” OLED larger display, SX60L 3.0 makes it easier to spot targets quickly and accurately. The built-in lens 1000 m LRF and ballistic calculation contribute to more accurate shooting. The scope is mainly used for field and forest hunting. Key Features

• 1280 × 1024 Resolution @12 μm thermal detector
•  High sensitivity Thermal Module NETD < 18 mK (@25°C, F# = 1.0) * 60 mm, F1.0 lens with detection range up to 3100 m
•   2560 × 2560 Resolution 1.03-inch OLED display
•   Built-in lens laser rangefinder up to 1000 m, with ballistic calculation
•  Rechargeable internal batteries and external battery, 9h continuous operation
• High shock resistance up to 1000 g/0.4 ms Specification Laser Rangefinder
•  LRF Module in Lens: Yes
•  Wavelength: 905 nm
•  Safety Class for Laser: Class 1
•  Max. Measuring Range: 1000 m
•  Measurement Accuracy: ±1 m
•  Min. Measuring Range: 10 m Thermal Module
•  Image Sensor: VOx Uncooled Focal Plane Arrays
•  Max. Resolution: 1280 × 1024
•  Frame Rate: 25 Hz Pixel Interval: 12 μm
• Response Waveband: 8 μm to 14 μm
• NETD: Less than 18 mK (@25°C, F# = 1.0)
•  Lens (Focal Length): 60 mm, F1.0
•  Focus Mode: Focus Ring
• Detection Range: 3100 m
•  Min. Focusing Distance: 6 m
•  Magnification: 2.5× to 28.5×, Support 1× step value of continuous zooming
•  Field of View(H×V), Degrees/m @100 m: 14.6° × 11.7°/25.6 m × 20.5 m Image Display * Display: 2560 × 2560, 1.03-inch OLED FFC (Flat Field Correction) Mode: Auto, Manual, External Correction
• Palettes: Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome * Exit Pupil: 6 mm * Eye Relief: 45 mm Diopter (Range): -4D to 4D
• Brightness Adjustment: Yes
• Tone Adjustment: Cold, Warm
• Contrast Adjustment: Yes Image Pro 2.0: Yes
• HSIS (HIKMICRO Shutterless Image System): No
•  Zoom Pro: No System Record Video: On-board Video Recording
• Capture Snapshot: Yes
•  Audio Recording: Yes
•  Recoil-Activation Recording: Yes
•  Storage: Built-in EMMC (64 GB)
• PIP: Yes * Hotspot: Yes
•  Hot Track: Yes *
• Distance Measurement: Yes
•   Zeroing Profiles: 5
• Freeze Zeroing: Yes
•   Max. Recoil: 1000 g/0.4 ms
•  Standby Mode: Yes
•  Ballistic Calculation: Yes
•   Local Album: Yes Power Supply
•   Battery Type: Two rechargeable Lithium batteries (internal), one replaceable and rechargeable 18650 battery (external)
•   Battery Operating Time: 9 hours continuous running (@25°C, LRF on)
•  Type-C Power Supply: DC 5 V/2 A, USB Type-C interface, Supports QC3.0
• Only the built-in battery will be charged via the type-C cable. Use the battery charger to charge the external battery.
• General * Mounting Standard: 30 mm * Dimension: 452.6 mm × 94.3 mm × 78.9 mm * Weight: 1000 g without external battery * Working Temperature: -30°C to 55°C (-22°F to 131°F) * Protection Level: IP67 * Center Height: 41 mm
