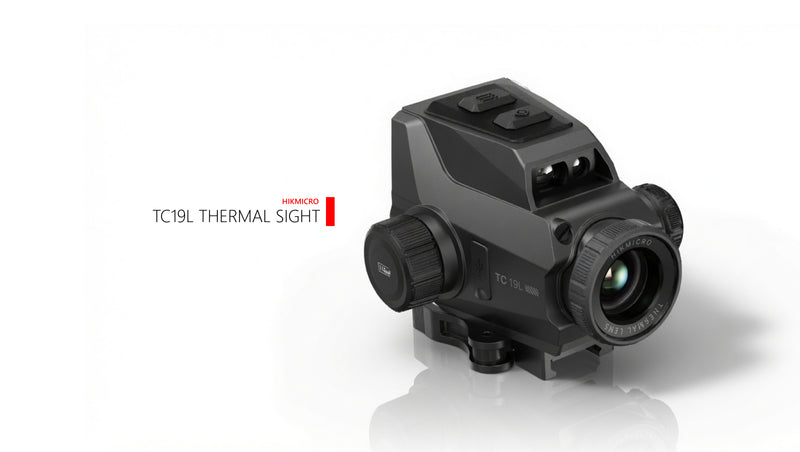

HIKTAC TC19L Thermal Sight
HIKTAC TC19L Thermal Sight
HIKTAC TC19L
Thermal Sight
The HIKMICRO HIKTac TC19L Thermal Sight is a premium thermal riflescope built for hunters and professional shooters who demand precision, speed, and reliability in every shot. Featuring a 256 × 192 VOx thermal detector with an impressive NETD below 18 mK, the TC19L delivers exceptional thermal image clarity, allowing users to detect and identify targets in complete darkness, fog, rain, and dense vegetation. Its 19 mm F1.0 lens provides a detection range of up to 900 metres, while the integrated 1000 m laser rangefinder and ballistic calculation deliver enhanced accuracy for long-range shooting.
A large 3.1-inch AMOLED display provides bright, high-contrast thermal imagery for an immersive viewing experience and improved situational awareness. Advanced imaging technologies including Image Pro 3.0, Zoom Pro, HSIS (HIKMICRO Shutterless Image System), and Sync Pro ensure smooth, detailed thermal images with silent calibration and enhanced zoom performance. Built-in video recording, snapshot capture, Picture-in-Picture mode, Wi-Fi hotspot connectivity, and five zeroing profiles make the TC19L an advanced solution for modern hunting applications.
Designed for rugged outdoor performance, the TC19L weighs only 290 g and is powered by a replaceable 18650 rechargeable battery, delivering up to 3.5 hours of continuous operation. Protected by an IP67-rated waterproof and dustproof housing, it is engineered to withstand harsh environmental conditions while providing dependable performance for hunting, pest control, and tactical operations.
HIKMICRO TC19L Thermal Sight Specifications
Image Sensor: VOx Uncooled Focal Plane Array
Maximum Resolution: 256 × 192
Frame Rate: 50 Hz
Pixel Pitch: 12 μm
Spectral Range: 8 μm – 14 μm
NETD: <18 mK (@25°C, F1.0)
Lens: 19 mm, F1.0
Focus Mode: Manual Focus Ring
Detection Range: Up to 900 m
Magnification: 1.2× – 9.6×
Minimum Focus Distance: 1 m
Field of View: 9.2° × 6.9°
Display: 3.1-inch AMOLED, 600 × 450
Colour Palettes: Black Hot, White Hot, Red Hot, IronBow
Tone Adjustment: Cold, Warm
Brightness Adjustment: Yes
Contrast Adjustment: Yes
Zoom Pro: Yes
HSIS (HIKMICRO Shutterless Image System): Yes
Image Pro 3.0: Yes
Sync Pro: Yes
Video Recording: Yes
Snapshot Capture: Yes
Standby Mode: Yes
Storage: Built-in 4 GB eMMC
Picture-in-Picture (PIP): Yes
Wi-Fi Hotspot: Yes
Local Album: Yes
Ballistic Calculation: Yes
Distance Measurement: Yes
Zeroing Profiles: 5
Freeze Zeroing: Yes
Battery Type: Replaceable & Rechargeable 18650 Battery
Battery Runtime: Up to 3.5 Hours
External Power: USB Type-C (5V DC / 2A)
Protection Rating: IP67
Dimensions: 106.9 × 94.8 × 86.7 mm
Weight: 290 g (Without Battery)
Operating Temperature: -30°C to 45°C
Laser Safety Class: Class 1
Laser Wavelength: 905 nm
Maximum Laser Range: 1000 m
Measurement Accuracy: ±1 m
Minimum Measuring Distance: 10 m
